Designed in collaboration with Kramer Scientific, M2 Bio Quad uniquely combines stereo macro and compound micro imaging capabilities in one microscope. This ability to combine the ergonomics of stereo observation and high-resolution microscopic observation in a single microscope offers enormous improvements in time management in the exploding field of studying fluorescent proteins of GFP, YFP, BFP and its new counterparts. Now you can sort larger populations in stereoscopic mode and simply pivot the objective system into position for high-magnification detailed observation. No need to move your sample to a different microscope!

If you work within the C. elegans, drosophila and zebra fish research communities where GFP and its variants have become instrumental in large scale sorting of large populations, the M2 Bio microscope is the right choice for you.

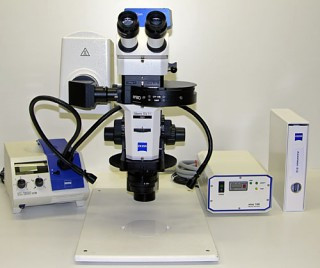

The unit pictured comes with:
Two position trinocular body
Zoom Optic Body (0.6X - 6.6X) with internal diaphragm
Axiovision Camera & 3.0 software
Wide Field eyepieces 10X/ 23mm FOV
Two fluorescent cubes (DAPI and GFP 470nm)
1.6X objective
10X Plan Apo objective
20X Plan Apo objective
100 watt mercury burner
100 watt transformer
Schott KL-1500 LCD fiber optic color temperature control illuminator
Rugged coarse fine focus mount
Total magnification range in stereo fluorescence and brightfield is 9X - 120X
Total magnification range in high magnification brightfield and fluorescence is 30X - 660X)

This unit just returned from Zeiss factory service and was given a clean bill of health and will include the service document with the purchase. These units sold new for over $35,000.00.
