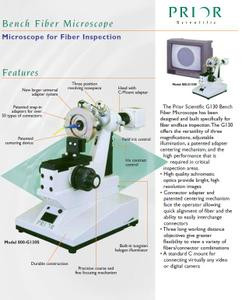

Prior Scientific G130 Bench Fiber Microscope has been designed and built specifically for fiber endface inspection. The G130 offers the versatility of three magnifications, adjustable illumination, a patented adapter centering mechanism, and the high performance that is required in critical inspection areas.

• High quality achromatic optics provide bright, high resolution images
• Connector adapter and patented centering mechanism face the operator allowing quick alignment of fiber and the ability to easily interchange connectors
• Three long working distance objectives give greater flexibility to view a variety of fibers/connector combinations
• A standard C mount for connecting virtually any video or digital camera

Three position revolving nosepiece Head with C-Mount adapter
Field iris control
Iris contrast control
Patented snap-in adapters for over 50 types of connectors
Patented centering device
New larger universal adapter system
Precision coarse and fine focusing mechanism
Durable construction
Built-in tungsten halogen illuminator

Power 115 volts AC, 50/60 Herz
Illumination 6 volts 20 watt tungsten halogen illuminator
Mechanical Standard coaxial coarse and fine focus
Adjustable field and aperture controls
Patented centering device
Triple nosepiece
10X, 0.22 N.A.Achromatic objective
20X, 0.30 N.A.Achromatic objective
40X, 0.45 N.A.Achromatic objective
Configuration 1: Bench Fiber Microscope with straight head
Configuration 2: Bench Fiber Microscope with 8° angled offset head

Over 50 types of connector adapters are available enabling virtually any fiber end to be examined. Adapters are snapped into the patented centering mechanism allowing for precise locating of the ferrule end. Standard adapters include:
800-G171X20 2.5mm Universal 800-G147L MPO, MTP
800-G172X20 2.5mm Universal/Angled 800-G153L MT/RJ
800-G169X20 1.25mm Universal (LC, MU) 800-G163L MPX
800-G176X20 1.25mm Universal (Angled) 800-G165L MT

The Video Fiber Viewer’s compact and portable design makes it ideal for the production floor, inspection workstations, field work and limited space work areas. The Viewer ensures crisp, clear images by using high quality, long working distance, glass achromatic objective.
