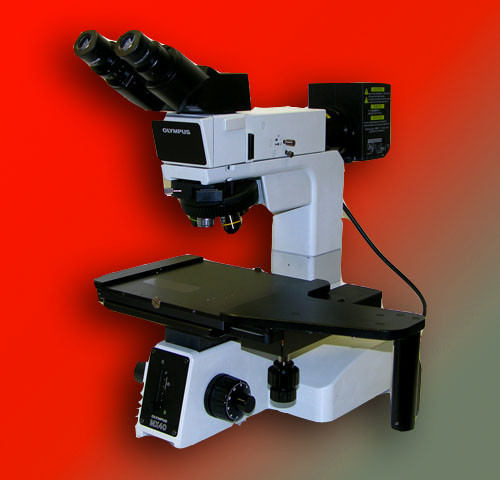

Olympus MX40 Reflected Light Inspection Microscope configured with MD plan 5X, UM Plan FL 10X, UM Plan FL 20X and UM Plan FL 50X objectives. It also has a pair of WHK 10X eyepieces, Rfl BD illuminator, binocular body, nosepiece and MX40 stand.

The Olympus MX40 reflected light inspection microscope is optimized for the inspection requirements of a variety of electronic components. It's also compatible with other industrial, geological, metallurgical and biological applications. Its compact size, ease of operation, 6" x 6" stage travel and cost-effectiveness make the MX40 an ideal inspection microscope offering superb operational versatility.

Specifications include: 6" arm-intergrated frame for reflected light transformer; 2" removable frame riser for extended working distance; trigger-grip stage movement control and standard x-y axis rotational controls; coaxial coarse and fine focus controls, 32mm stage travel rack (2mm up and 30mm down from the focal plane); fine focus stroke per rotation is 0.1mm, minimum focus adjustment gradation.

The illuminator is a 12 volt 100 watt halogen bulb light source. Brightfield/darkfield switchable, field diaphragm and neutral density filters. The current list price is in excess of $14,500. This unit is in excellent condition.
