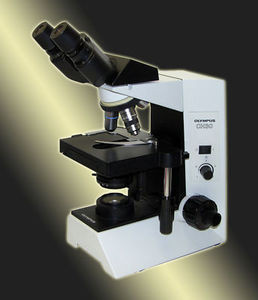

- Olympus CH30 Compound Transmitted Light Microscope
)
Product Description
Olympus CH30 compound transmitted light microscope with the following specifications:
LOW INVENTORY ITEM - SUBJECT TO PRIOR SALE
Optical System: LB Optical system (finite-corrected system)
All glass surfaces are pristine having no fungus, dust, scratches, or element separations. This is truly a fine microscope that is ready to work as soon as placed on the counter and plugged in. This unit sold for over $1,800.00 new.
LOW INVENTORY ITEM - SUBJECT TO PRIOR SALE
Optical System: LB Optical system (finite-corrected system)
Illumination: 6V 20W halogen bulb.
Focusing: Stage movement by roller guide (rack & pinion), coaxial coarse and fine focusing knob, coarse stroke per rotation: 39.6mm, fine stroke per rotation: 0.2mm, full range stroke: 25mm, upper limit stopper, torque adjustment on coarse focus knob.
Revolving nosepiece: Built-in quadruple nosepiece with inward tilt.
Stage: Platform Size: 188mm(W) X 134mm(D). Movement: 76mm X-axis x 50mm Y-axis. Specimen Holder: double slide holder.
Dimensions: 223mm(W) X 392mm(H) X 301mm(D)
Objectives: Olympus Achromat 4X, 10X, 40X and 100X oil immersion
Eyepieces: 10X WF, 18mm FOV
Instruction Manual
Objectives: Olympus Achromat 4X, 10X, 40X and 100X oil immersion
Eyepieces: 10X WF, 18mm FOV
Instruction Manual
All glass surfaces are pristine having no fungus, dust, scratches, or element separations. This is truly a fine microscope that is ready to work as soon as placed on the counter and plugged in. This unit sold for over $1,800.00 new.
