Product Description

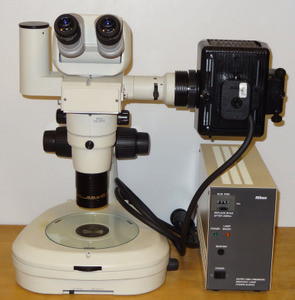

Nikon SMZ800 with Epi-fluorescence. Nikon stereoscopic fluorescent microscopes allow easy observation of living cells under the fluorescence method. Switching between the fluorescence method and brightfield method is quick and easy. Four filter blocks can be switched using the slide lever. The microscope is mounted on the C-DSD Diascopic Stand that features condenser lenses that can be switched between low and high magnifications and allow high N.A. objectives to take advantage of the full potential of their superior resolving power. Features the Nikon developed Oblique Coherent Contrast (OCC) illumination system, known as "pseudo DIC," that allows colorless and transparent samples to be observed in high releif.
This microscope features the following options:
83025 Iris Diaphragm
83412 C-DSD Diascopic Stand
83400 SMZ800 Zoom Stereo Microscope
83422 Tilting Binocular Tube
83330 pair of C10X WF eyepieces
83481P-HR Plan APO 1X objective lens
84246 6 volt 30 watt halogen lamp
83403 PFD Focusing Mount D
79035 two power cords
83450 P-FLA Stereo Fluorescent Illuminator
93509 HMX-4 Lamphouse (new style)
93510 Mercury Lamp Socket 100 watt
78589 HBO 100 watt fluorescent mercury lamp
87532 HBO 100 watt Power Supply
81709 Epi Collector Lens
83451 Photo Tube
83456 C-CFP (Cyan) Fluorescent Filter
83457 P-ENDOW GFP (FTIC) Bandpass Fluorescent Filter
83459 P-TRITC (DSRED) Filter Set Fluorescent Filter
This unit has an ergonomic trinocular tube with photo capabilities. The current retail price on this unit from Nikon is $23,721.00.
The Zoom range for the microscope is: 1X to 6.25X.
