Product Description

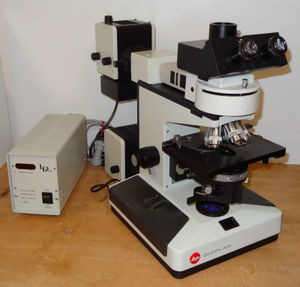

Leitz Diaplan fluorescent microscope. This unit is in nice condition! It has been cleaned and lubricated by our firm and is ready to go to work. This unit gives beautiful images in both fluorescent and transmitted light modes. Some of the options on this microscope are:
This unit is large and heavy and may need to be shipped in several containers. Shipping cost is estimated at $150.00.
- Leitz HBO 100 watt mercury fluorescent lamphouse illuminator
- 3-place fluorescent filter turret
- 3-Position Widefield Trinocular optical viewing body
- Fluorescent Intermediate piece
- NPL 10X Plan Fluotar 160mm TL Objective NA 0.30
- Plan Apochromat 16X 160mm TL Objective NA 0.45
- NPL 40X Plan Fluotar 160mm TL Objective NA 0.70
- NPL 100X Plan Fluotar oil immersion 160mm TL Objective NA 1.32
- EF 40X Phaco-2 160mm TL Objective NA 0.65
- Phase Turret tip-out substage condenser Achromat 0.90 NA S1.1 with correct annuli for 40X objective (red letters-strain free)
- Large mechanical stage
- Periplan GF 12.5X eyepieces with 25mm FOV
- Built-In Field Diaphragm and contrast control
- 100 watt 12 volt transmitted halogen illuminator
- Chroma UV/Violet Fluoresent Filter #C23728
- Leitz Fluoresent Filter 513-601 U.V.+Violet +Blue E3
- LUDL LEP HBO 100 watt power supply
This unit is large and heavy and may need to be shipped in several containers. Shipping cost is estimated at $150.00.
